INSTALL (cont) - TM-9-2350-261-34

TM-9-2350-261-34 Carrier Personnel Full Tracked Armored M113A2 2350-01-068-4077 Carrier Command Post Light Tracked M577A2 2350-01-068-4089 Manual
Page Navigation
320

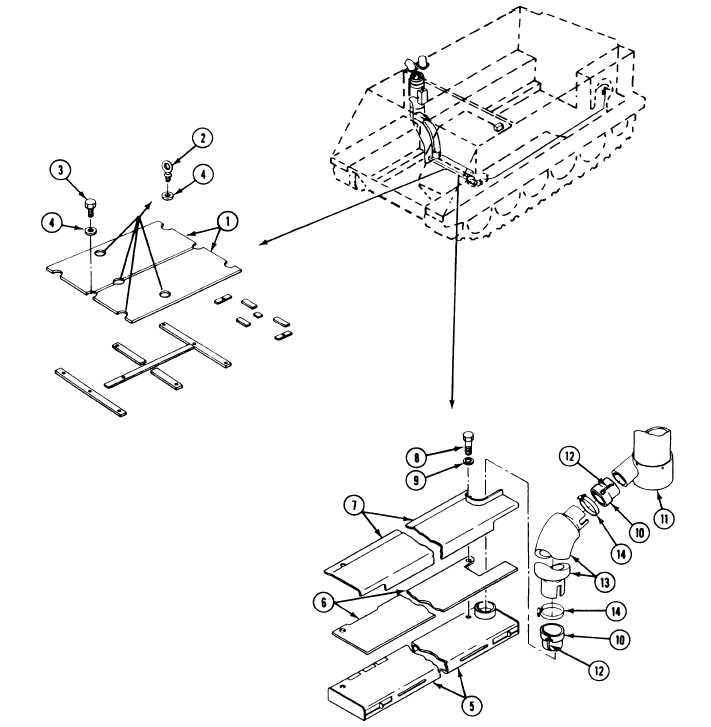

T M 47. 48. 9-2350-261-34 Secure left and right front floor plates (1) to 49. hull crossmembers with five eyebolts (2), one screw (3), and six washers (4). Align heater duct (5), blanket (6), and 50. shield (7) with three front holes in front floor plates (1). Secure with three new screws (8) and washers (9) from kit. Install nipple (10) on heater plenum (11), and nipple ( 10) on heater duct (5). Secure with two latches (12). Secure hose (13) to two nipples (10) with two clamps (14). 11-22
