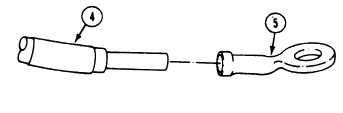

TM 9-2350-261-20-2 c. If large diameter lead (1), fill crimp (2) onterminal (3) with solder. Use soldering gun.Insert lead into melted solder in crimp.Allow to cool.d. If small diameter lead (4), position ter-minal (5) on lead. Crimp terminal on lead.Use crimping tool from electrical tool kit.e. Heat shrink those leads with insulatedsleeving (6) on terminal (7). Use heatgun.10. Install multiple connectors the same way assingle connectors. See steps 7 and 8 above.11. If removed, install Y-type adapters anddummy plugs.a. Install Y-type adapter (8) on harnessleads (9).b. Install dummy plugs (10) in male or fe-male connector (11).FOLLOW-THROUGH STEPS 1. Use multimeter to perform continuity check3. Turn MASTER SWITCH ON (see your -10).before connecting batteries.4. Turn MASTER SWITCH OFF (see your -10).2. Connect battery ground lead (page 13-2).END OF TASK14-6
