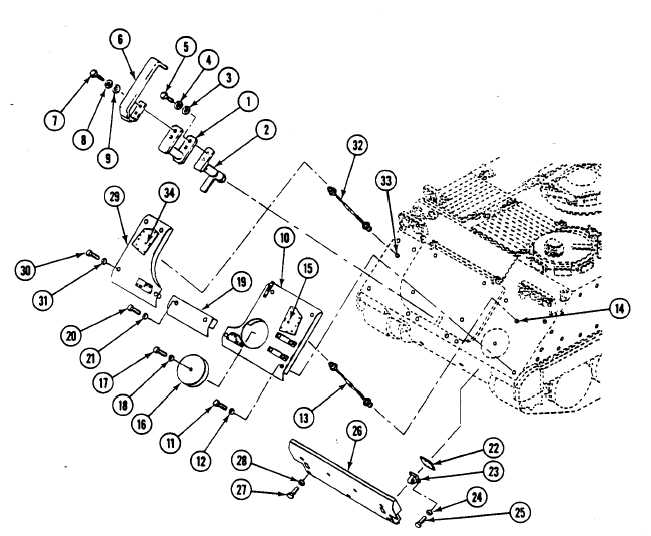

TM 9-2350-277-20-5 REPLACE FRONT ARMOR (M113A3 ONLY) — Continued 0749 00 4. Connect extension harness (13) to smoke grenade launcher harness (14) and push through hole (15) in front left armor plate (10). 5. Install access cover (16) with screw (17) and washer (18). 6. Install armor plate (19) on front center of vehicle with two screws (20) and washers (21). 7. Install two spacer plates (22) and towing eyes (23) on hull with twelve washers (24) and screws (25). 8. Install armor plate (26) on lower front center of vehicle with seven screws (27) and fourteen washers (28) as required. 9. Install front right armor plate (29) on hull with screws (30) and washers (31). 10. Connect extension harness (32) to smoke grenade launcher harness (33) and push through hole (34) in front right armor plate (29). 0749 00-11
