AIR CLEANER BLOWER (CONTINUED)

CHAPTER 5 MAINTENANCE PROCEDURES COOLING SYSTEM

TM-9-2350-267-34 Hull Powerpack Drive Controls Tracks Suspension and Associated Components Carrier Ammunition Tracked Manual
Page Navigation
77

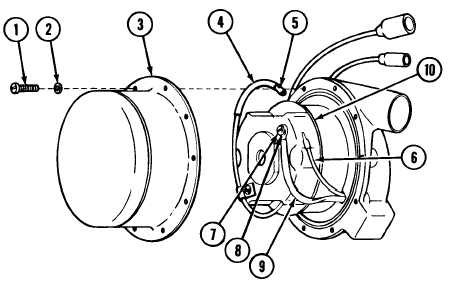

AIR CLEANER BLOWER (CONTINUED) F G H Connect ground lead (9) to end bell (10) using screw (7) and new lockwasher (8). Connect electrical lead (5) and electrical lead (6) and slide elec- trical lead insulator (4) over junction. Install motor cover (3) using 10 screws (1) and 10 new lockwashers (2). TA57379 4-33/(4-34 blank) Change 2 TM 9-2350-267-34
