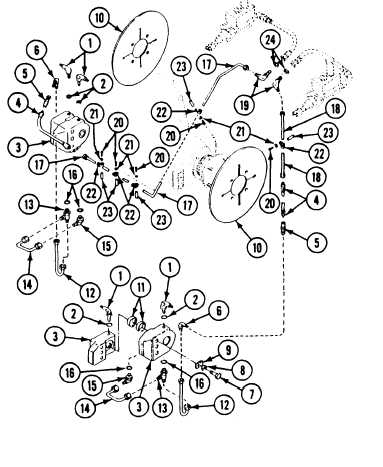

TM 9-2350-261-20-2 R E P L A C E / R E P A I R P I V O T S T E E R B R A K E S , H O S E S , T U B E S , A N DF I T T I N G SDESCRIPTIONThis task covers:Remove (page 23-68).Clean, Inspect, and Replace (page 23-69).Install (page 23-69).INITIAL SETUP Tools:General Mechanics Tool Kit (Item 30, App D)Torque Wrench (Item 97, App D)Materials/Parts:FRH hydraulic fluid (Item 19, App C)Packing (8)Personnel Required:Unit MechanicReferences:See your -10See your LOEquipment Conditions:Engine stopped/shutdown (see your -10)Ramp lowered (see your -10)Carrier blocked (see your -10)Trim vane lowered and power plant frontaccess door open (see your -10)Hull front access cover removed (page 24-24)Pivot steer system drained (page 23-61)1.2.3.4.5.6.7.8.Remove four elbows (1) (with bleeder valves)and packings (2) from two pivot steer brakes(3). Discard packings.Disconnect two hoses (4) from quick discon-nect couplings (5).Remove two couplings (5) from twoelbows (6).Remove six screws (7), washers (8), two clips(9), and two pivot steer brakes (3) from twopivot steer disks (10).Remove brake linings (11) from each pivotsteer brake half (3).Remove two elbows (6), tubes (12), tees (13),tubes (14), elbows (15), and four packings(16) from two pivot steer brakes (3). Discardpackings.Remove two hoses (4) from tubes(17 and 18).Disconnect tubes (17 and 18) fromelbows (19).9. Remove five screws (20), washers (21),clamps (22), and tubes (17 and 18) fromfive weldnuts (23).10. Remove two nuts (24) and elbows (19) frombulkhead.23-68
