R E P L A C E F U E L S H U T O F F C A B LE

TM-9-2350-261-20-2 Carrier Personnel Full Tracked Armored M113A2 2350-01-068-4077 Carrier Command Post Light Tracked M577A2 2350-01-068-4089 Manual
Page Navigation
521

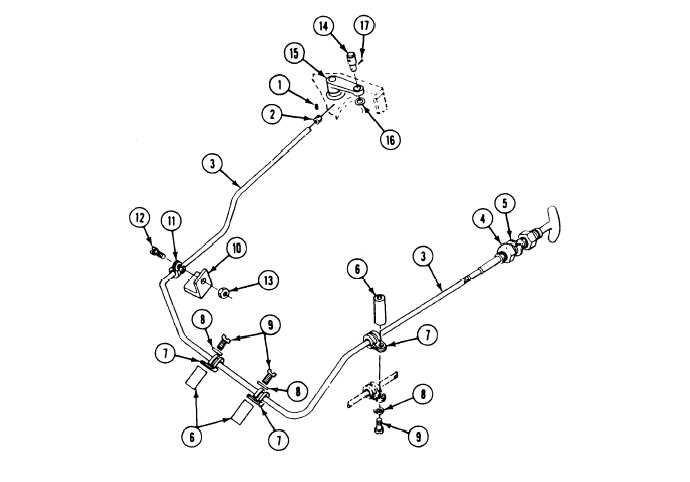

7. 8. 9. 10. Loosen set screw (1). Remove from control assembly (3). rear collar (2) Remove control assembly out of power plant compartment through power plant front access door. Remove nut (4) and washer (5) from control assembly at driver’s compartment bulkhead. Remove control assembly from driver’s compartment. INSTALL 11. Feed control assembly through mounting hole in driver’s compartment bulkhead to power plant front access door opening. 12. Slide washer (5) and nut (4) onto control assembly. Secure control assembly to driver’s TM 9-2350-261-20-2 13. Install control assembly on three weldnuts (6). Secure with three clamps (7), washers (8) and screws (9). C A U T I O N Contact between the fuel shutoff cable and radiator coolant lines during operation of the earner may cause melting of the plastic case on the fuel shutoff cable. 14. 15. 16. Remove slack from fuel shutoff cable so that it does not touch the auxiliary radiator tube. Install control assembly on differential bracket (10). Secure with clamp (11), screw (12), and new locknut (13). Install pin (14) on fuel control arm (15). Secure with washer (16) and new cotter pin (17). compartment bulkhead. GO TO NEXT PAGE 23-45
