TM 9-2350-261-20-2
R E P L A C E I N S T R U M E N T P A N E L O N - O F F S W I T C H E S
DESCRIPTION
This task covers: Remove (page 11-7).
Install (page 11-8).
INITIAL SETUP
Tools:
References:
General Mechanics Tool Kit (Item 30, App D)
see your -10
Materials/Parts:
Equipment Conditions:
Lockwasher (10)
Engine stopped/shutdown (see your -10)
Carrier blocked (see your -10)
Personnel Required:
Battery ground lead disconnected (page 13-2)
Unit Mechanic
R E M O V E
NOTE
There are four toggle switches on the
instrument panel of all M113A2 FOV
except the M981 which has five switches.
Remove all toggle switches the same way,
except for numher of circuit leads.
1.
2.
Do not disconnect more than one switch
at a time. Mark each circuit lead to make
sure you reconnect to correct contacts.
See wiring diagram foldouts.

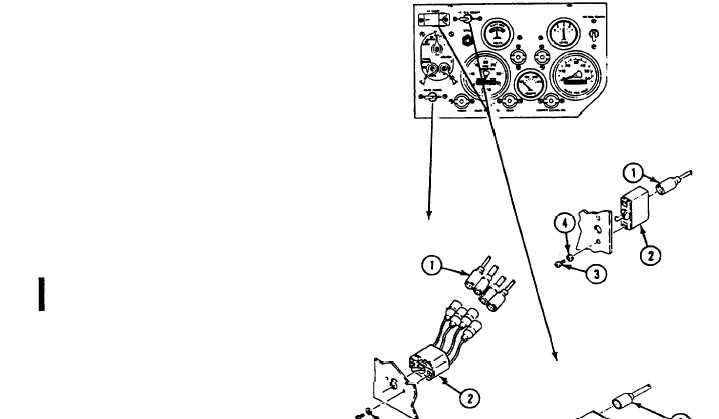

Disconnect circuit leads (1) from rear of
switch (2).
NOTE
If switch has guard, remove/install guard
with steps 2 and 3.
Remove two screws (3), lockwashers (4), and
toggle switch (2) from instrument panel.
Discard lockwashers.
GO TO NEXT PAGE
Change 4
11-7
