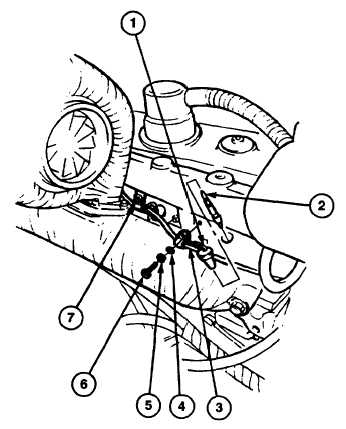

TM 9-2350-287-20-14-27. GLOW PLUG AND GLOW PLUG CONTROLLER REPLACEMENT (continued).7.Secure wiring harness (3) to engine with five clamps (7), washers (4), new lockwashers (5), and screws (6).CAUTIONInstall glow plug by hand. Do not use wrench. Hand-tightening glow plug willensure that glow plug is not cross-threading in engine. Failure to comply canresult in damage to equipment.8.Install glow plug (2) in engine. Turn glow plug (2) by hand to make sure it is properly threading into engine.9.Once glow plug (2) has been tightened by hand, use wrench to tighten glow plug (2) an additional one-half turn.10.Connect eight wiring harness connectors (1) to eight glow plugs (2).FOLLOW-ON MAINTENANCE:Install exhaust pipe (if removed) (para 5-2).· Install air cleaner intake duct (if removed) (para 4-9).[Follow-On Task Deleted]Install front hull slope plate (if removed) (para 15-11).Connect battery ground cables (para 7-42).Change 1 4-83
