PORTABLE INSTRUMENT PANEL WIRING HARNESS (12260298) REPAIR (CONTINUED)

PORTABLE INSTRUMENT PANEL WIRING HARNESS (12260298) REPAIR (CONTINUED) - TM-9-2350-267-34_162

STE/ICE RESISTOR BOX DISASSEMBLY AND ASSEMBLY

TM-9-2350-267-34 Hull Powerpack Drive Controls Tracks Suspension and Associated Components Carrier Ammunition Tracked Manual
Page Navigation
139

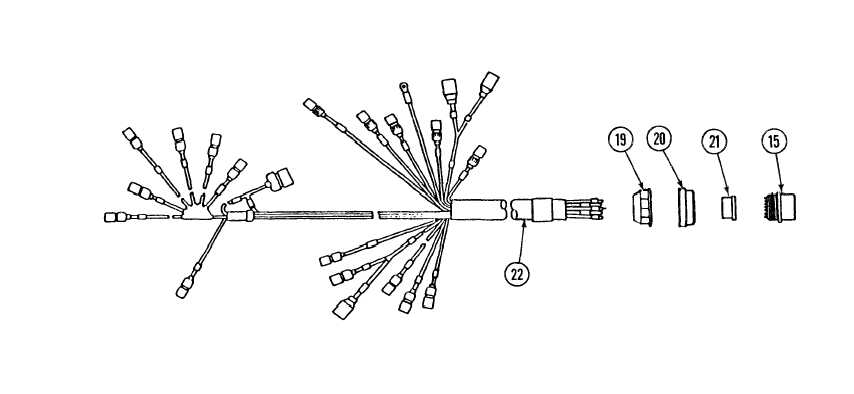

PORTABLE INSTRUMENT PANEL WIRING HARNESS (12260298) REPAIR (CONTINUED) DISASSEMBLY ASSEMBLY A B C Loosen nut (19) and slide rearward over wiring harness (22). A Replace insulation on repaired wire. Remove nut (20), grommet (21) and electrical connector (15) from wiring B Install nut (20), grommet (21) and electrical connector (15) on wiring harness (22). harness (22). Remove insulation as needed to repair damaged wire. C Install nut (19) on electrical connector (15) and tighten. 6-34.3/(6-34.4 blank) Change 4 TM 9-2350-267-34
