BREATHER TUBE, FILTER AND MOUNT: REMOVAL AND INSTALLATION

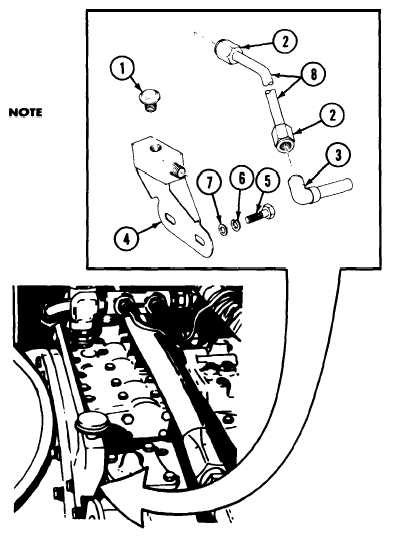

Exploded view
rotated 1800.
REMOVAL
A Remove breather filter (1).
B Loosen two nuts (2) at elbow (3) and mount (4).
C Remove two screws (5), two lockwashers (6) and two flat
washers (7). Discard lockwashers..
NOTE
Breather tube can be removed without removing
mount.
D Remove mount (4) and breather tube (8).
E Clean breather tube (8).
INSTALLATION
NOTE
Do not tighten screws.
A Install mount (4) loosely with two screws (5), two new
lockwashers (6) and two flat washers (7).
B
Install breather tube (8).
C Tighten nuts (2).
D Tighten two screws (5).
E Install breather filter (1).
