APU CONTROL BOX: DISASSEMBLY, ASSEMBLY, CIRCUIT TEST AND INSTALLATION

Section III APU POWER UNIT CONTROL BOX

APU CONTROL BOX: DISASSEMBLY, ASSEMBLY, CIRCUIT TEST AND INSTALLATION (cont) - TM-9-2350-267-20_1213

TM-9-2350-267-20 Carrier Ammunition Tracked M992 (2350-01-110-4660) Manual
Page Navigation
1115

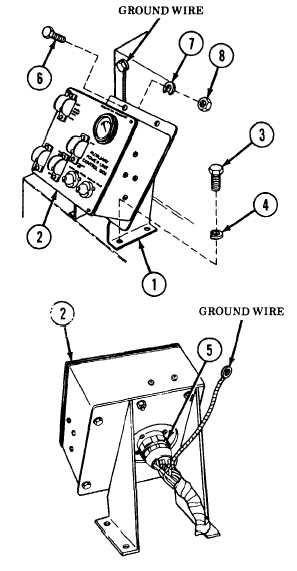

13-36 TM 9-2350-267-20 APU CONTROL BOX: REMOVAL, DISASSEMBLY, ASSEMBLY, CIRCUIT TEST AND INSTALLATION (CONTINUED) WARNING Turn OFF MASTER switch. Disconnect battery ground cables. A Remove M2A2 air purifier (p 14-3). B Remove bracket (1) with attached APU control box (2) by removing four screws (3) and four washers (4). Disconnect harness ground wire. C Disconnect electrical wiring harness connector (5) from APU control box (2). D Remove APU control box (2) from bracket (1) by removing four screws (6), four lockwashers (7) and four nuts (8). E Do circuit continuity test (p 13-39) and short circuit test (p 13-40). Replace any defective components during disassembly. TA309982
