TM 9-2350-261-34

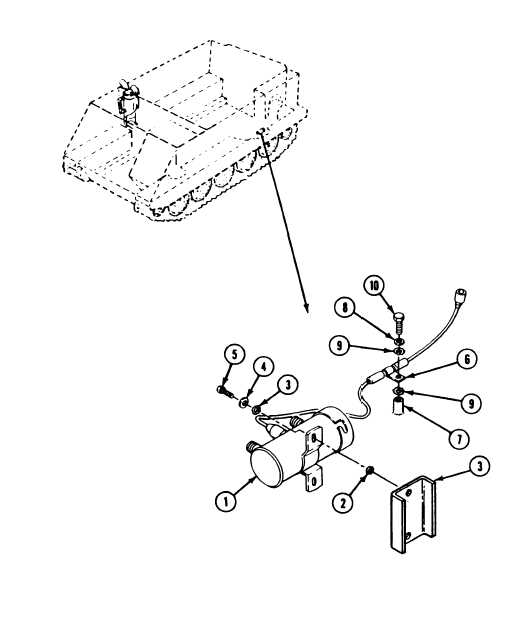

27. Secure fuel pump (1) to threaded bracket (2)
with four lockwashers (3), two flat
washers (4) and screw (5).
C A U T I ON
Shielded lead
c a n d a m a g e p u m p.
Shielded lead must not contact pump
body or other surfaces.
28. Secure shielded lead (6) to weldnut (7) with
washer (8), two Iockwashers (9), and
screw (10).
W A R N I NG
Dry
cleaning
solvent
P - D - 6 8 0 is
toxic
and
flammable. Always use in
an open area with good air
flow, away from sparks,
heat, or flames .
Wear
goggles and gloves. Do not breathe
vapors. Avoid contact with skin, eyes, and
clothes. If you get dizzy while using
solvent, breathe fresh air and get medical
help. If solvent gets on hands, wash them.
If solvent gets in eyes, flush eyes with
fresh water and get medical help
immediately.
Keep fire
extinguisher
nearby.
29.
30.
Clean external pipe threads of fittings with
dry cleaning solvent.
Apply a thin, even coat of primer and then
sealing compound to cleaned external pipe
threads of fittings. Do not apply primer or
sealing compound beyond small end of
threads.
GO TO NEXT PAGE
11-5
