E N G I N E O I L L O W P R E S S U R E I N D I C A T O R M A L F U N C T I O NS ....CONT.

E N G I N E O I L L O W P R E S S U R E I N D I C A T O R M A L F U N C T I O NS ....CONT. - TM-9-2350-261-20-1_360

T R A N S M I S S I O N O I L H I T E M P I N D I C A T O R M A L F U N C T I O N S

TM-9-2350-261-20-1 Carrier Personnel Full Tracked Armored M113A2 2350-01-068-4077 Carrier Command Post Light Tracked M577A2 2350-01-068-4089 Manual
Page Navigation
331

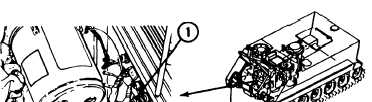

TM 9-2350-261-20-1 1, Remove front main harness circuit 27J/34 plug (1) from ENGINE OIL LOW PRESSURE indicator assembly jack (2). 2. Measure resistance between circuit 34 plug pin and ground. 3. Does multimeter read more than O ohms? Y ES 1. Remove engine harness plug (1) from front main harness jack (2) at carrier bulkhead. 2. Measure resistance between engine harness plug (1) pin D (3) and ground. I 1. Install front main harness plug on ENGINE OIL LOW PRESSURE indicator jack. 2. Remove jumper wire. 3. Replace engine oil low pressure switch (page 15-2). 4. Verify no faults found. 1. Remove jumper wire. 2. Install front main harness plug on ENGINE OIL LOW PRESSURE indicator assembly jack. 3. Install indicator cover lens and bulb. 4. Repair engine harness circuit 34 (page 14-3). 5. Verify no faults found. 3-152 1. Remove jumper wire. 2. Install engine harness onto ENGINE OIL LOW PRESSURE switch. 3. Repair front main harness circuit 34 (page 14-3). 4. Verify no faults found. 3. Does multimeter read 0 ohms
