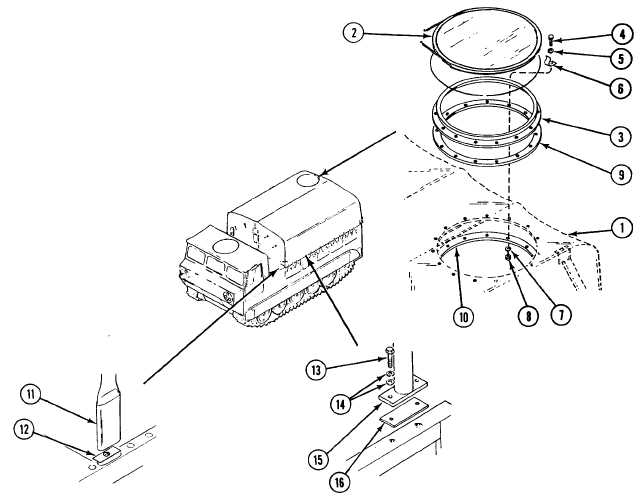

TM 9-2350-247-20-3 REPLACE CARGO COMPARTMENT COVER — Continued 0417 00 6. Remove cargo compartment cover (1) from carrier. 7. Remove escape hatch cover (2) from hatch cover frame (3). 8. Remove 15 screws (4), 14 washers (5), retainer (6), 15 lock washers (7), and 15 nuts (8) that secure hatch cover frame (3) and gasket (9) to cargo compartment cover (1) and clamping ring (10). Discard lock washers. 9. Remove four bows (11) and eight pads (12) from carrier. 10. Remove 8 screws (13) and 16 washers (14) that secure 2 bows (15) to carrier. Remove bows and 4 pads (16). 0417 00-3
