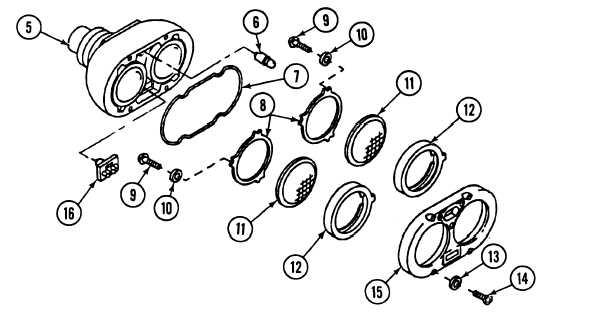

TM 9-2350-287-20-17-31. HEADLIGHT ASSEMBLY REPAIR (continued).c.1.2.3.4.5.6.7.8.9.ASSEMBLYInstall new spring pin (17) in headlightbody (5).Install two new gaskets(18) on two sealed-beam units (19).Install two sealed-beam units (19) inheadlight body (5).Install lamp (6) and LED (16) in headlightbody (5).Install two new gaskets (12), lenses (11),and lens retainers (8) on cover (15) with sixscrews (9) and new Iockwashers (10).Adhesives can burn easily, can give off harmful vapors, and are harmful to skin andclothing. To avoid injury or death, keep away from open fire and use in a well-ventilated area. If adhesive gets on skin or clothing, wash immediately with soap andwater.Apply cement adhesive to new seal (7).Install seal (7) in groove of cover (15).Install four screws (14) and new Iockwashers (13) in cover (15).Install cover (15) on headlight body (5) with four screws (14).7-89
