3-5. OIL FILTER BRACKET REPLACEMENT

b. INSTALLATION - TM-9-2350-287-20-1_534

TM-9-2350-287-20-1 Carrier Ammunition Tracked M992A21 (2350-01-352-3021) EIC:AE6 Manual
Page Navigation
511

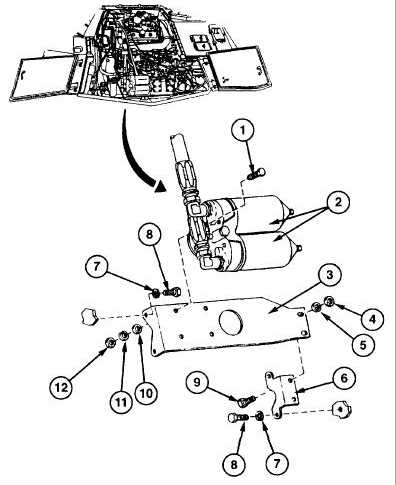

TM 9-2350-287-20-1 3-5. OIL FILTER BRACKET REPLACEMENT. This Task Covers: a. Removal b. Installation Initial Setup: Tools/Test Equipment: Equipment Conditions: General mechanic's tool kit Vehicle parked on level ground (refer to (Item 24, Appendix I) TM 9-2350-287-10). Transmission access doors opened (refer Materials/Parts: to TM 9-2350-287-10). Lockwasher (8) (Item 177, Appendix H) Self-locking nut (2) (Item 313, Appendix H) a. REMOVAL 1. Remove four screws (1), washers (10), lockwashers (11), and nuts (12) and oil filter assembly (2) from mounting bracket (3). Discard lockwashers. 2. Remove four screws (8) and lockwashers (7) and mounting bracket (3) from transmission. Discard lockwashers. 3 Remove two screws (9), washers (5), and self- locking nuts (4) from bracket (6), and separate mounting bracket (3) from bracket (6). Discard self-locking nuts. b. INSTALLATION 1. Install mounting bracket (3) on bracket (6) with two screws (9), washers (5), and new self- locking nuts (4). 2. Install mounting bracket (3) on transmission with four screws (8) and new lockwashers (7). 3. Install oil filter assembly (2) on mounting bracket (3) with four screws (1), washers (10), new lockwashers (11), and nuts (12). FOLLOW-ON MAINTENANCE: Close transmission access doors (refer to TM 9-2350-287-10). 3-38
