396

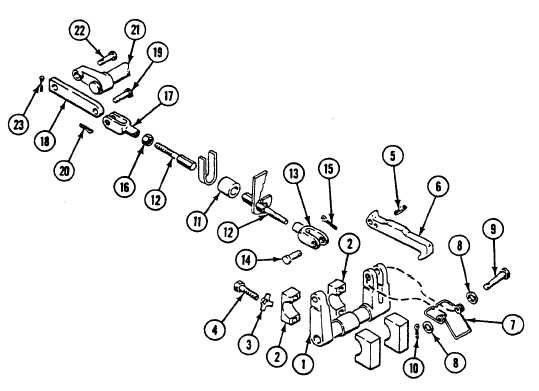

TM 9-2350-277-20-4 REPLACE RAMP LINKAGE (M1064A3 ONLY) — Continued 0528 00 12. Align connecting link (18) with arm (21). Secure with headed pin (22) and new cotter pin (23). 13. Adjust ramp lock (WP 0523 00). FOLLOW-THROUGH STEPS WARNING Falling ramp could cause severe injuries. Keep personnel clear of ramp area. 1. Install ammunition racks that were removed (WP 0606 00) or (WP 0608 00). 2. Start engine (see your -10). 3. Raise and lock ramp to check that ramp linkage operates properly (see your -10). 4. Stop engine (see your -10). END OF TASK 0528 00-5/6 blank
