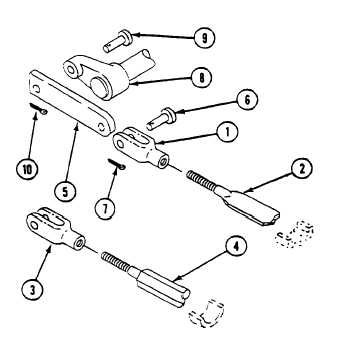

TM 9-2350-277-20-4 REPLACE RAMP LINKAGE (M113A3, M901A3, M981A3, AND M1059A3 ONLY) — Continued 0526 00 8. Align connecting link (5) with arm (8). Secure with headed pin (9) and new cotter pin (10). 9. Adjust ramp lock (WP 0521 00). FOLLOW-THROUGH STEPS 1. Raise and lock ramp to check that ramp linkage works right (see your -10). 2. Stop engine (see your -10). END OF TASK 0526 00-5/6 blank
