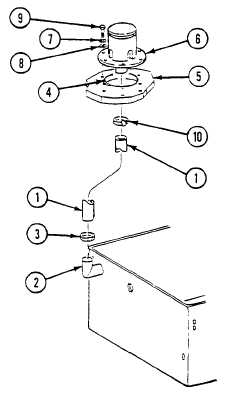

TM 9-2350-277-20-3REPLACE BATTERY BOX VENT FITTING (M981A3 AND M58 ONLY) — Continued 0355 00INSTALLATION1. Install hose (1) on battery box (2) with hose clamp (3).2. Apply a bead of sealing compound around hole (4) in vehicle hull (5).3. Align holes in battery box vent fitting (6) with holes in vehicle hull (5).4. Secure battery box vent fitting (6) on vehicle hull (5) using six new lockwashers (7), washers (8), and screws (9).5. Install hose (1) on battery box vent fitting (6) with hose clamp (10).FOLLOW-THROUGH STEPS1. Start engine (see your -10).2. Raise and lock ramp (see your -10).3. Stop engine (see your -10).END OF TASK0355 00-3/4 blank
