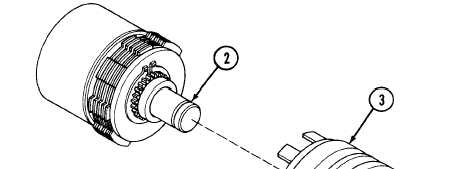

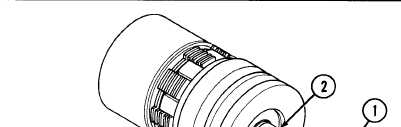

11-7 TM 9-2350-267-34 Section II HYDRAULIC CLUTCH HYDRAULIC CLUTCH REPAIR NOTE Repair of hydraulic clutch is direct support maintenance. DISASSEMBLY A Remove snapring (1) from shaft (2). B Remove pulley (3) from shaft (2) by tapping out with a ham- mer and a brass drift if necessary.
