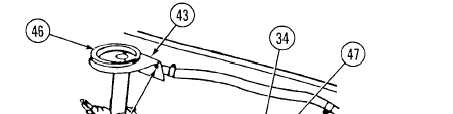

1 0 - 2 .6 Change 4 WINTERIZATION KIT: INITIAL INSTALLATION (CONTINUED) TM 9-2350-267-34 W X Install exhaust tube end support bracket (43) on three hull front plate tapping blocks with three 3/8-inch 16 x 1-inch screws (44) and flat washers (45). Close transmission access door to position exhaust tube end. Reopen door and tighten screws (44). Install gasket (46). Place clamp (47) on free end of 5/8 ID x 16-inch long hose (30), install hose on coolant heater outlet elbow (34) and tighten clamp. Remove heater exhaust cover (48), three screws (49) and three flat washers (50) from inside of transmission access left door (51). Lift cover and gasket (52) from outside surface of door. Retain screws, flat washers and gasket for use in installation of exhaust outlet (step Z). Y
