TM 9-2350-261-20-4
REPLACE/REPAIR SMOKE GENERATOR FUEL FILTER/WATER SEPARATOR
0715 00
(M1059 ONLY) -- Continued
REPAIR

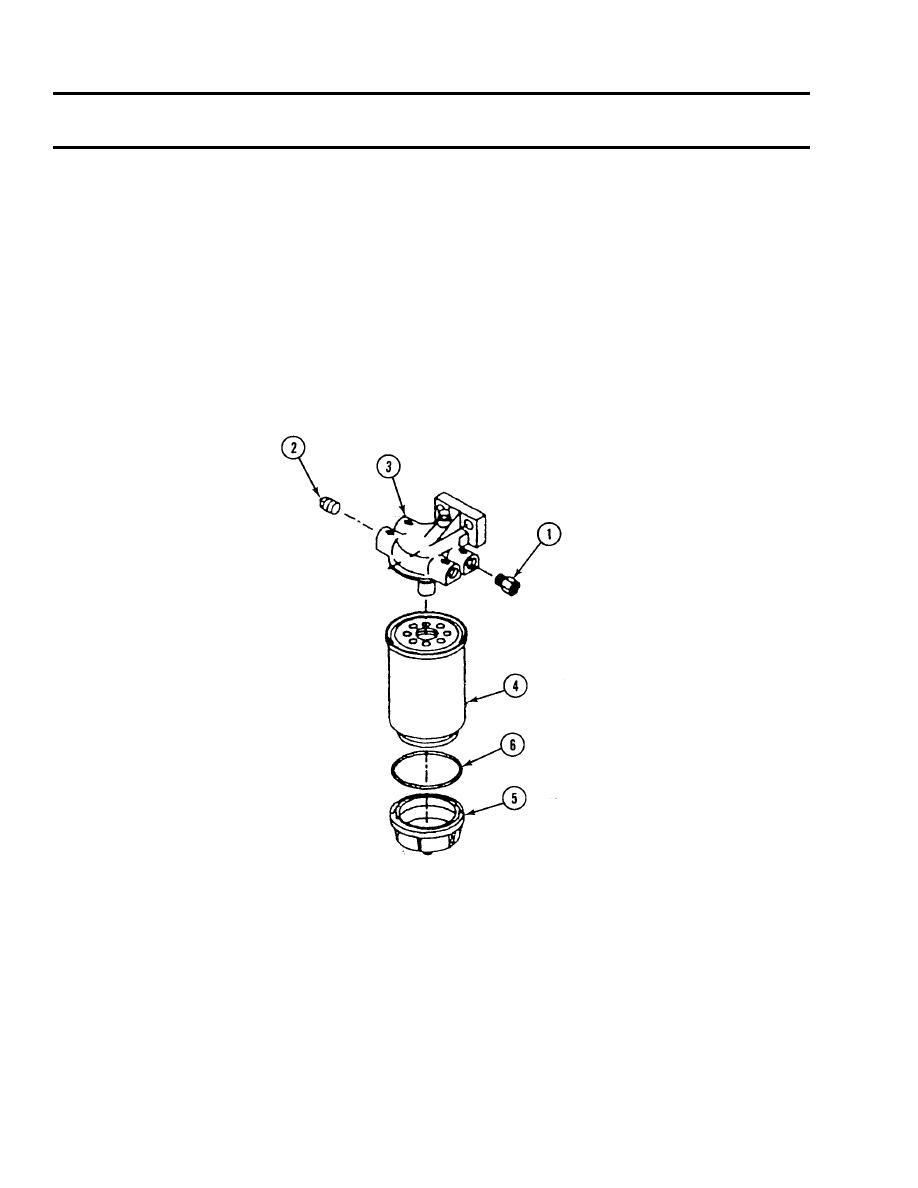

1.
Remove two adapters (1) and plugs (2) from filter head (3).
2.
Remove filter head (3) and filter element body (4).
3.
Remove sediment bowl (5) from filter element body (4). Discard filter element.
4.
Remove gasket (6) from sediment bowl (5). Discard gasket.
5.
Coat new gasket (6) with a small amount of fluid from filter head (3). Install gasket (6) on sediment bowl (5).
6.
Install sediment bowl (5) on new filter element body (4).
7.
Coat threaded part on top of filter element body (4) and install on filter head (3).
8.
Install two plugs (2) and adapters (1) on filter head (3).
