TM 9-2350-261-20-2
R E P A I R D O M E L I G H T ( A L L E X C E P T M 5 7 7 A 2 A N D M 1 0 6 8)
D E S C R I P T I O N
This task covers: Remove (page 12-61).
Clean, Inspect, and Repair (page 12-62).
Install (page 12-62).
I N I T I A L S E T UP
Tools:
References:
General Mechanics Tool Kit (Item 30, App D)
see your -10
Materials/Parts:
Equipment Conditions:
Lockwasher
Engine stopped/shutdown (see your -10)
Seal
Carrier blocked (see your -10)
Dome light removed (page 12-60)
Personnel Required:
Unit Mechanic
R E M O V E
N O T E
1.
2.
3.
4.
5.
6.
7.
8.
If dome light retainer mounting screw
separates from retainer, replace retaining
clip.

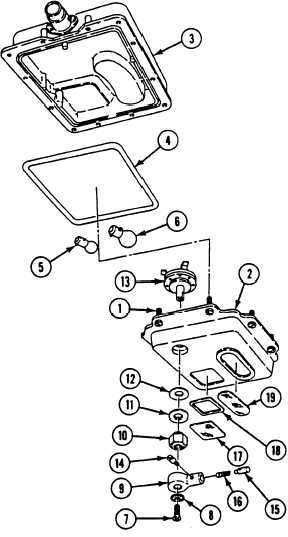

Remove eight screws (1) and retainer (2)
from dome light body (3).
Remove
seal.
Push in
buIb (6)
buIbs.
Remove
seal (4) from retainer (2). Discard
on light buIb (5) and blackout
and turn to the left. Remove two
screws (7), lockwasher (8), and knob
(9) from retainer (2). Discard lockwasher.
Remove nut (10), washer (11), gasket (12),
and switch (13) from retainer (2).
Remove setscrew (14), plunger (15), and
plunger (16) from knob (9).
Remove lens (17) and gasket (18) from
retainer (2).
Remove lens (19) from retainer (2).
GO TO NEXT PAGE
Change 3
12-61
