REPLACE BLACKOUT HEADLIGHT

TM-9-2350-261-20-2 Carrier Personnel Full Tracked Armored M113A2 2350-01-068-4077 Carrier Command Post Light Tracked M577A2 2350-01-068-4089 Manual
Page Navigation
138

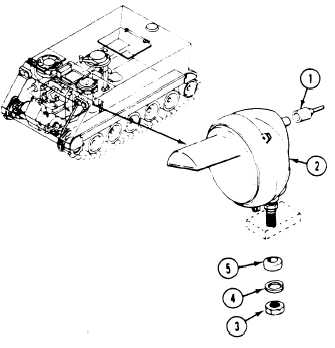

TM 9-2350-261-20-2 REPLACE BLACKOUT HEADLIGHT INITIAL SETUP Tools: References: General Mechanics Tool Kit (Item 30, App D) see your -10 Materials/Parts: Equipment Conditions: Lockwasher Engine stopped/shutdown (see your -10) Carrier blocked (see your -10) Personnel Required: Unit Mechanic 1. 2. Disconnect circuit 19 lead (1) from rear of blackout headlight (2). Remove nut (3), Iockwasher (4), finishing washer (5), and blackout headlight (2) from hull bracket. Discard lockwasher. CLEAN, INSPECT, AND REPAIR 3. Check lead and connector. Replace frayed, broken, or cracked parts (page 14-1). INSTALL 4. Install blackout headlight (2), finishing washer (5), new Iockwasher (4), and nut on hull bracket. (3) 5. Connect circuit 19 lead (1) to rear of blackout headlight (2), FOLLOW-THROUGH STEPS 1. Turn MASTER SWITCH ON (see your –10). 3. Turn all switches OFF (see your -10). 2. Turn blackout headlight switch ON to check that headlight operates properly (see your –10). END OF TASK 12-9 R E M O V E
