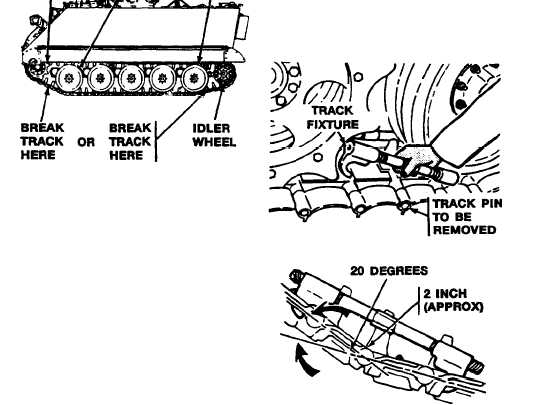

TM 9-2350-261-102. Start engine (page 2-161).3. Drive carrier to firm level ground(page 2-176).4. Drive carrier slowly so the trackpin to be removed is abouthalfway between the first roadwheel and the drive sprocket orhalfway between the idler wheeland fifth road wheel. Do not usesteering levers to stop carrier.N O TEBlock track with suitable object.5. Block track on side which is notbeing broken (page 2-221).6. Stop engine (page 2-184).7. Release track tension all the wayon track to be broken(page 3-21).WARNINGYou could be in-j u r e d i ftracks w i n g s o u t a ndbits you. Do notstand in front oftrackbeingbroken.8. Install two track fixture acrossthe pin to be removed. Tightentrack fixtures to about a 20degree angle between the shoesto be disconnected. There shouldbe about 2 inches between thefixture.6 and the track at the pin.Use 1-5/16 inch open endwrench.GO TO NEXT PAGE3 - 25
