TM 9-2350-247-20-2
REVERSE T150 TRACK DRIVE SPROCKET AND TRACK ASSEMBLY -- Continued
0357 01
5.

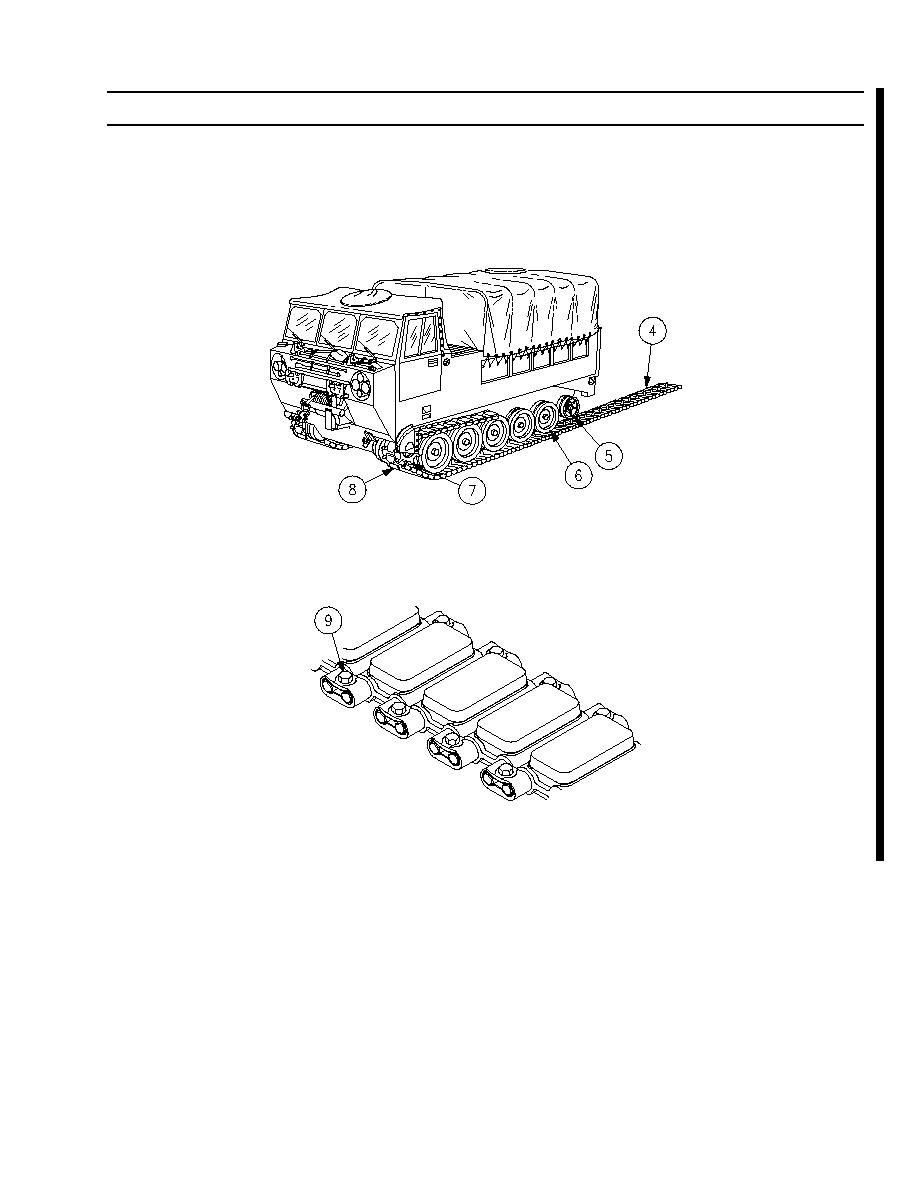

Install tracks (8) on vehicle.
a.
(H): Notify driver in tow vehicle to stop when seven track shoes (4) have passed the fifth road wheel (6). Using a
crowbar, position track (8) on sprockets (7). Notify driver to start vehicle engine and slowly drive forward.
b.
(H): Use crowbar to guide track (8) until over idler wheels (5). Notify driver to stop when three track shoes (4)
remain before the fifth road wheel (6).
FOLLOW-THROUGH STEPS
1.
Join track (see your -10).
2.
TIGHTEN TWO END CONNECTOR BOLTS (9) TO 400-430 LB-FT (529-579 NM) TORQUE. Use torque wrench.
3.
Adjust track tension (see your -10).
4.
Road test vehicle to check that drive sprocket and track assembly are installed properly (WP 0128 00).
END OF TASK
0357 01-3/4 blank
