OPERATING THE CONVEYOR (continued)
5. If upper rear door (9) was closed with small doors open, open upper rear door (9) to 450
from closed position (p. 2-138). If upper rear door (9) was open, lower door to 450 from
closed position.
NOTE
Steps 6 through 11 apply only if conveyor was positioned
above horizontal.

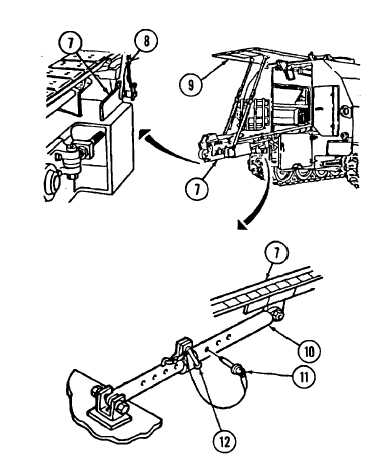

6. Connect short legs of two slings (8) to conveyor (7).
WARNING
To avoid damage to conveyor components and serious injury
to personnel, be sure slings are free of obstructions when
raising upper rear door.
7. Raise upper rear door (9) until two slings (8) are under tension and two conveyor support
struts (10) move, freeing two quick-release pins (11). Remove two quick-release pins (11) from
two conveyor support struts (10), and loosen two friction handles (12).
