FOLLOW-THROUGH STEPS - TM-9-2350-277-34

REPLACE COMMANDERS CUPOLA (M113A3, M1059A3, M1064A3, AND M58 ONLY)

TM-9-2350-277-34 Carrier Personnel Full Tracked Armored M113A3 2350-01-219-7577 (EIC AE7) Carrier Command Post Light Tracked M577A3 2350-01-369-6085 (EIC AE7) Manual
Page Navigation
298

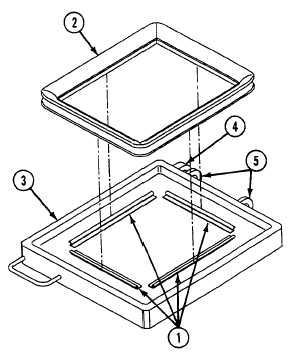

TM 9-2350-277-34 REPAIR HOPPER HATCH HINGE (M58 ONLY) — Continued 0049 00 4. Install rubber seal (2) on underside of hatch (3) with seal bead under four retaining strips (1). Bend retaining strips over seal bead. FOLLOW-THROUGH STEPS 1. Install hopper hatch on carrier (see your -20). END OF TASK 0049 00-5/6 blank
