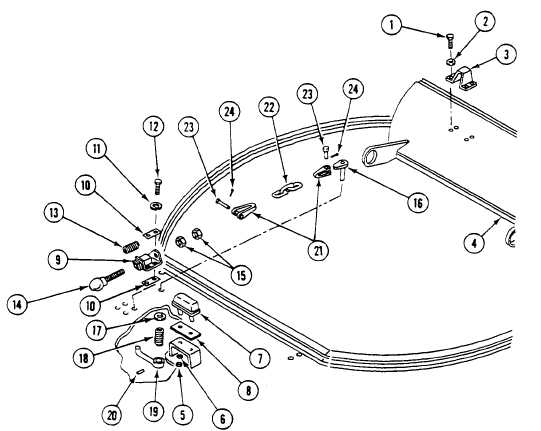

TM 9-2350-277-20-4REPLACE MORTAR HATCH EXTERIOR CATCHES AND BUMPERS (M1064A3 ONLY) —Continued0480 00NOTEStriker and catch for center and right door sections are both mounted on center door section.7. Remove four screws (1), lockwashers (2), and catch (3) from door section (4). Discard lockwashers.NOTEBumper for center door section is mounted on right door section.8. Remove two locknuts (5), washers (6), bumper (7), and shims(s) (8) from hull bracket. Discard locknuts.0480 00-3
