TM 9-2350-277-20-3
REPAIR BATTERY BOX (M113A3, M901A3, AND M1059A3 ONLY) Continued
0350 00

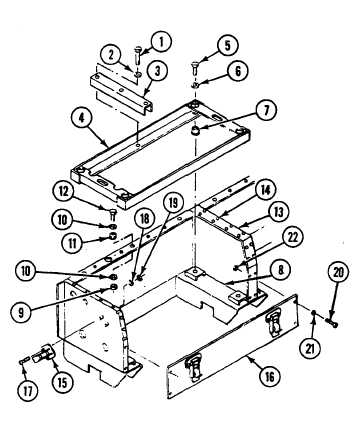

INSTALLATION
1.
If removed, install new rubber bumpers (14) on battery box (13).
2.
Install three grommets (11) in rear of battery box (13). Secure with three screws (12), six washers (10), and three nuts (9).
3.
Install four new frame mounts (7) in battery box frame (4).
4.
Install battery box frame (4) with frame mounts (7). Secure with four screws (5) and washers (6).
5.
Install channel divider (3) on battery box frame (4). Secure with two screws (1) and washers (2). TIGHTEN SCREWS
TO 120-192 LB-IN (14-22 N m) TORQUE.
NOTE
Six latches are installed the same way.
6.
Install latch (15) on battery box (13) or front plate (16). Secure with two screws (17), washers (18), and new
locknuts (19).
NOTE
On newer models, there are screws and washers securing the front plate to the battery box.
7.
Install front plate (16) on battery box (13). Secure with four screws (20), eight washers (21), and four new locknuts (22).
0350 00-4
