REPLACE DRAIN COCK AND HOSE

FOLLOW-THROUGH STEPS - TM-9-2350-277-20-2_616

TM-9-2350-277-20-2 Carrier Personnel Full Tracked Armored M113A3 2350-01-219-7577 Carrier Command Post Light Tracked M577A3 2350-01-369-6085 Manual
Page Navigation
533

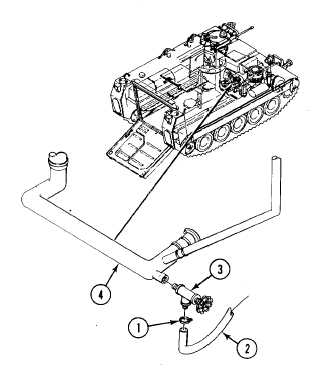

TM 9-2350-277-20-2 REPLACE DRAIN COCK AND HOSE 0235 00 THIS WORK PACKAGE COVERS: Removal (page 0235 00-1). Installation (page 0235 00-1). INITIAL SETUP: Maintenance Level Unit Tools and Special Tools General Mechanic’s Tool Kit (WP 0926 00, Item 65) Materials/Parts Sealing compound (WP 0928 00, Item 56) Personnel Required Unit Mechanic References See your -10 Equipment Condition Engine stopped (see your -10) Carrier blocked (see your -10) Power plant lower rear access panel removed (see your -10) Power plant bottom access cover removed (WP 0450 00) Cooling system drained (WP 0227 00) REMOVAL 1. Loosen clamp (1) on drain hose (2). Remove hose (2) from drain cock (3). 2. Remove cock (3) from radiator outlet tube (4). INSTALLATION 1. Apply light coat of sealing compound to external tapered threads of cock (3). 2. Install cock (3) on radiator outlet tube (4). 3. Install hose (2) on cock (3). Secure with clamp (1). 0235 00-1
