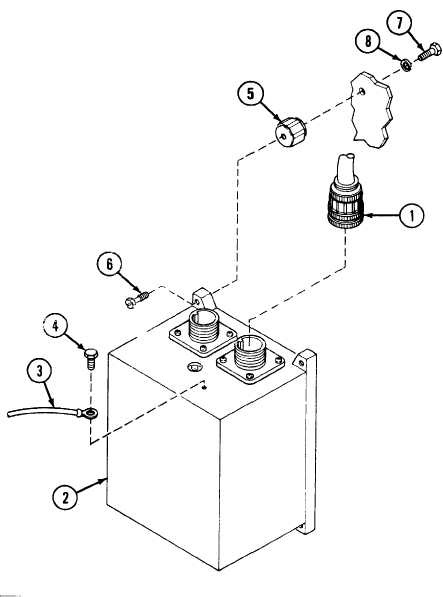

6-50TM 9-2350-267-20APU VOLTAGE REGULATOR: REMOVAL AND INSTALLATIONREMOVALWARNINGTurn OFF MASTER switch. Disconnect batteryground cables.ABCDDisconnect two electrical plugs (1) from APU voltageregulator (2).Remove ground wire (3) from APU voltage regulator (2) byremoving screw (4).Remove APU voltage regulator (2) from four standoff in-sulators (5) by turning four screws (6) counterclockwise un-til free of insulators.Remove four insulators (5) from APU bulkhead by removingone screw (7) and one lockwasher (8) from each insulator (5).INSTALLATIONReverse removal procedures.TA311081
