5-8
TM 9-2350-267-20
MOUNT BASE ASSEMBLY: REMOVAL, DISASSEMBLY, ASSEMBLY AND INSTALLATION (CONTINUED)
E
F
G

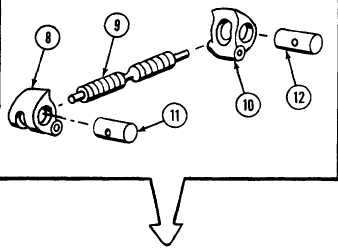

Turn jaw (8) counterclockwise to remove from bolt (9).
NOTE
Inspect mount base (4), jaws (8 and 10) and jaw
nuts (11 and 12) for cracks,
Turn jaw (10) clockwise to remove from bolt (9).
Slide jaw nuts (11 and 12) out of jaws (8 and 10).
NOTE
Inspect bolt (9) and jaw nuts
damaged threads.

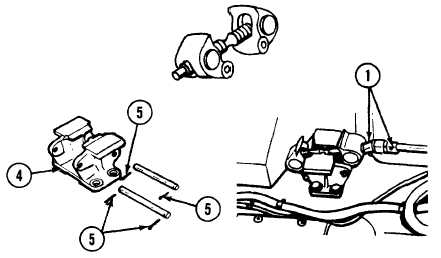

ASSEMBLY
Reverse disassembly procedures.
NOTES
(11 and 12) for
Replace two cotter pins (1) and four cotter
pins (5).
Make sure jaws (8 and 10) are evenly spaced
on bolt (9) during assembly.
. .
Make sure hexhead on bolt (9) is installed on
high side of mount base (4).
INSTALLATION
