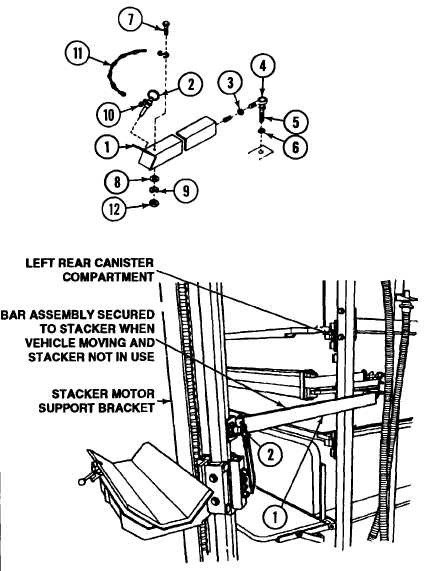

STACKER BAR ASSEMBLY REMOVAL, DISASSEMBLY, ASSEMBLY AND INSTALLATION REMOVAL A Disconnect bar assembly (1) from stacker motor support bracket by pulling quick-disconnect pin (2). B Loosen jam nut (3) on flexible rod end (4). C Remove bar (1) from flexible rod end (4). D Loosen jam nut (6) on flexible rod end (4). E Turn nut (5) to remove flexible rod end (4) from left rear canister compartment cross member. DISASSEMBLY A Remove quick-disconnect pin (2) from bar assembly (1) by removing screw (7), flat washer (8), lockwasher (9), and nut (12). Discard lockwasher. B Remove chain (11) from quick-disconnect pin (2) by bending S-hook (10). ASSEMBLY Reverse disassembly procedures using new lockwasher. INSTALLATION Reverse removal procedures. 12-45/(12-46 blank) Change 4 TM 9-2350-267-20
