TM 9-2350-261-34
15.
16.
17.

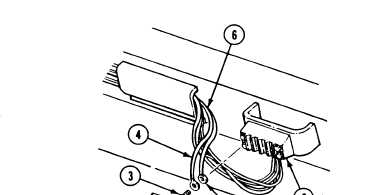

Remove cover (1) from terminal block (2).
Remove two screws (3), circuit TB1-2 and
TB1-4 leads (4 and 5) from terminal
block ( 2).
Remove turret wiring harness (6) from
carrier.
I N S T A L L
18.
19.
20.
Install wiring harness (6) in carrier.
Install circuit leads TB1-4 and TB1-2
( 5 and 4) on terminal block (2). Secure with
two screws (3).
Install cover
1) on termina block (2).
21.
22.
Install circuit 2 lead (7) and new grommet
(8) in distribution box (9). Secure lead with
screw ( 10) and new lockwasher ( 11).
Install cover ( 12) and new gasket (13) on
distribution box (9). Secure with six screws
( 14), washers ( 15) and new locknuts (16).
GO TO NEXT PAGE
6-51
