TM 9-2350-261-20-4
REPLACE FIRE EXTINGUISHER CYLINDER AND MOUNT -- Continued
0769 00
INSTALLATION
NOTE
The carbon dioxide (CO2 ) cylinder has a 5-pound (2 kg) capacity with a maximum weight of
18 pounds (8 kg). Weigh cylinder before installation. If weight loss is more than 10 percent (2
pounds) (1 kg), replace cylinder with a fully charged one.
1.

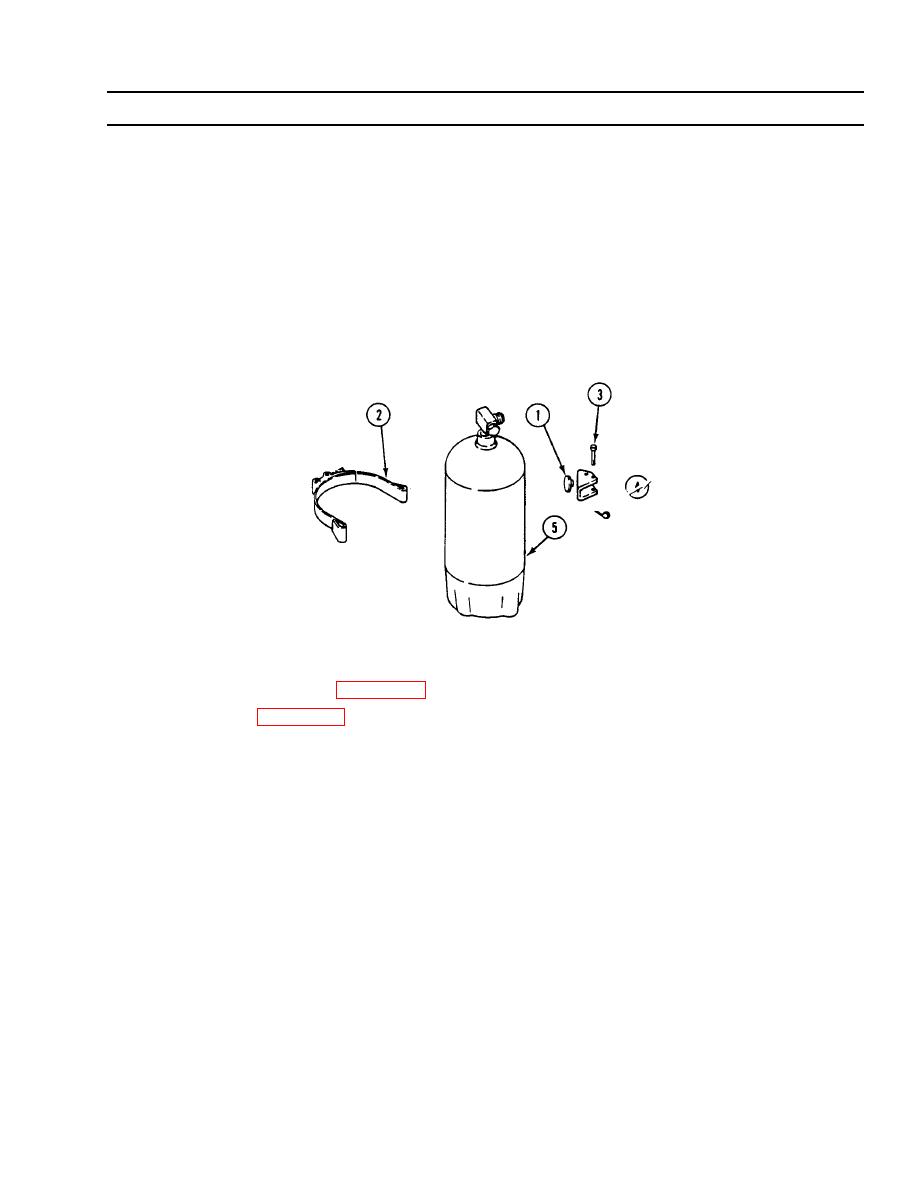

If removed, install four bumpers (1) in hull brackets.
Place two clamps (2) on hull brackets. Secure with four pins (3) and new cotter pins (4).
2.
Hold cylinder (5) on hull brackets. Secure with two clamps (2). TIGHTEN CLAMPS TO 51-59 LB-IN (5-6 NM)
3.
TORQUE. Use torque wrench and socket set.
FOLLOW-THROUGH STEPS
1.
2.
END OF TASK
