TM M9-2350-261-20-2
INSTALL

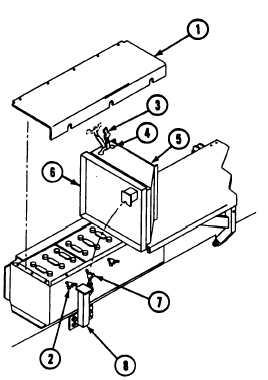

4. install battery box cover (1) and tighten
three wing nuts (2).
5.
6.
Remove web strap (3) from slot (4) on FAX
mount assembly (5) and lower FAX hinged
base extension (6).
Tighten nut (7) on FAX hinge base
extension support (8). -
END OF TASK
13-6.2
Change 3
