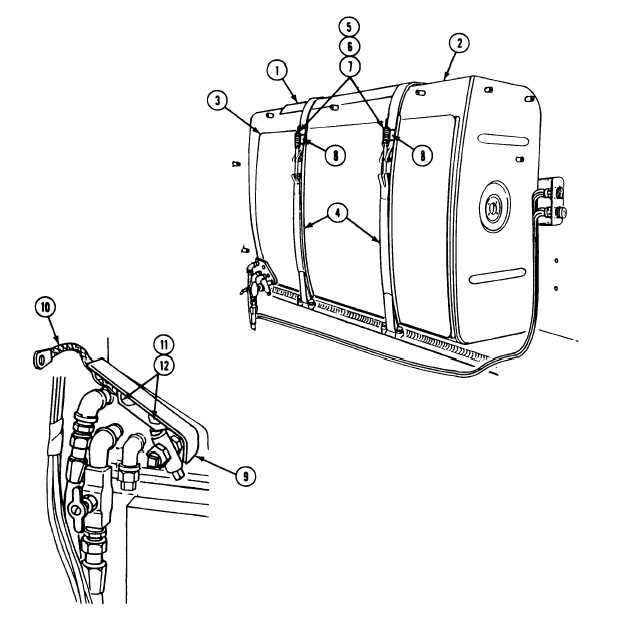

57. Place retainer (1) on top side of fuel
tank (2).
58. Place shield (3) on inboard side of fuel
tank (2).
59.
60.
Secure fuel tank (2) to hull with four straps
(4), two springs (5), nuts (6), and four
washers (7). Adjust strap springs as shown
on decal (8).
Install fuel line guard (9) and ground lead
(10) on fuel tank (2). Secure with two
screws (11) and five new lockwashers (12).
6-18
T M 9 - 2 3 5 0 - 2 6 1 - 2 0 -1
