503

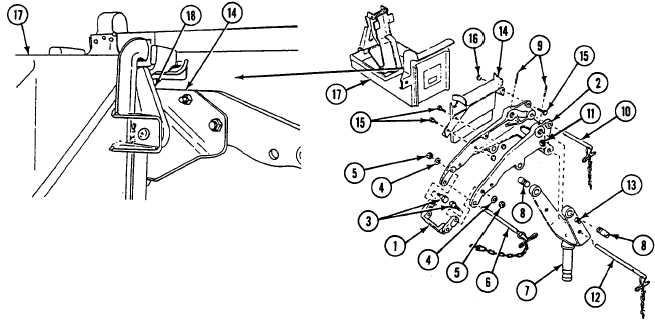

TM 9-2350-247-20-3 REPLACE CALIBER .50 MACHINE GUN MOUNT — Continued 0513 00 ASSEMBLY 1. Install spacer cradle (1) on cradle (2) with two bolts (3), washers (4), and nuts (5). 2. Install rear locking pin (6) with chain attached through cradle (2) and spacer cradle (1). Attach end of chain to one bolt (3). Tighten both bolts. 3. Place cradle (2) on pintle (7). Secure with two setscrews (8). 4. Align holes in setscrews (8) with holes in top of cradle (2). Install two new spring pins (9) to secure setscrews (8). 0513 00-4
