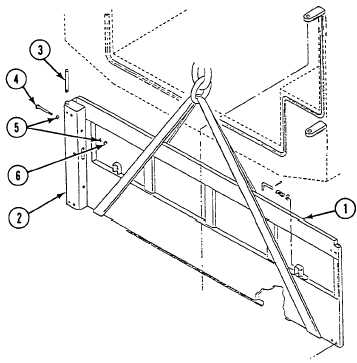

TM 9-2350-247-20-3 REPLACE CARGO DOOR — Continued 0402 00 INSTALLATION 1. Attach suitable lifting device to support weight of cargo door (1). 2. Place cargo door (1) on left control bracket (2) and install top and bottom hinge pins (3). Secure with two screws (4), four washers (5), and two nuts (6). 3. Remove suitable lifting device. 0402 00-7
