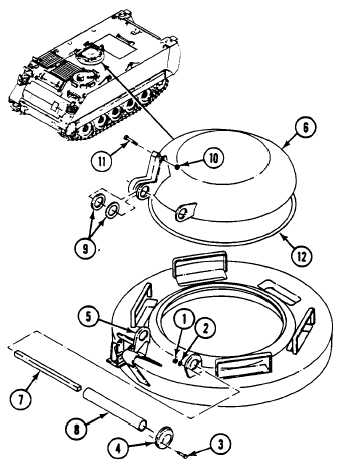

TM 9-2350-277-34 REPAIR COMMANDER’S CUPOLA (M113A3, M1059A3, M1064A3, AND M58 ONLY) — Continued 0051 00 28. Place cover (6) in vertical position. Install retainer (4) on cupola bracket. Secure with two screws (3), washers (2), and new locknuts (1). 29. Align striker (17) with holes in cupola cover. Secure with two washers (16) and screws (15). 30. Place shim(s) (14) and support (11) on hull. Secure with two washers (13) and screws (12). Do not torque screws at this time. 0051 00-17
