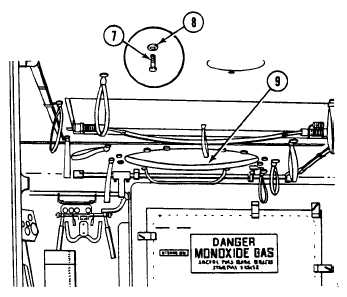

TM 9-2350-277-34 REPAIR COMMANDER’S CUPOLA (M113A3, M1059A3, M1064A3, AND M58 ONLY) — Continued 0051 00 NOTE Rotation of cupola after installation should require no more than 150 lb-ft (204 N m) torque. 7. Secure cupola (9) to deck with 12 washers (8) and screws (7). TIGHTEN SCREWS TO 120 TO 130 LB-FT (162 TO 176 N m) TORQUE. 8. Align pad (6) with holes in commander’s hatch. Secure with six washers (5) and screws (4). 9. Align handle (3) with commander’s hatch. Secure with two washers (2) and screws (1). TIGHTEN SCREWS TO 120-130 LB-FT (162-176 N m) TORQUE. 0051 00-12
