REPAIR FRONT MAIN WIRING HARNESS

FOLLOW-THROUGH STEPS - TM-9-2350-277-34_256

FOLLOW-THROUGH STEPS - TM-9-2350-277-34_258

TM-9-2350-277-34 Carrier Personnel Full Tracked Armored M113A3 2350-01-219-7577 (EIC AE7) Carrier Command Post Light Tracked M577A3 2350-01-369-6085 (EIC AE7) Manual
Page Navigation
213

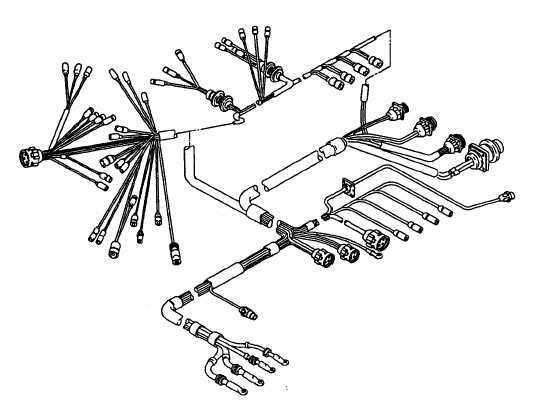

TM 9-2350-277-34 REPAIR FRONT MAIN WIRING HARNESS 0031 00 THIS WORK PACKAGE COVERS: Repair or Replacement (page 0031 00-1). INITIAL SETUP: Maintenance Level Direct Support Tools and Special Tools Automotive Fuel and Electrical System Repair Tool Kit (WP 0120 00, Item 59) Electrical Connector Tool Kit (WP 0120 00, Item 60) Digital Multimeter (WP 0120 00, Item 38) Materials/Parts Insulation tape (WP 0122 00, Item 19) Personnel Required Fuel and Elec Sys Rep 63G10 References See your -20 Equipment Condition Front main wiring harness assembly removed (WP 0030 00) REPAIR OR REPLACEMENT 1. Perform continuity check on front main wiring harness assembly to determine which parts require repair or replacement. Use multimeter. 2. Repair connector(s) as required (WP 0026 00). 3. Repair terminals as required (see your -20). 4. Repeat continuity check on front main wiring harness assembly to ensure that repairs have been completed. 5. Use insulation tape to bind wiring harness. 0031 00-1
