REPLACE SMOKE GENERATOR SYSTEM POWER SUPPLY CABLE ASSEMBLY (M1059A3 ONLY)

TM-9-2350-277-20-5 Carrier Personnel Full Tracked Armored M113A3 2350-01-219-7577 (EIC AE7) Carrier Command Post Light Tracked M577A3 2350-01-369-6085 (EIC AE7) Manual
Page Navigation
474

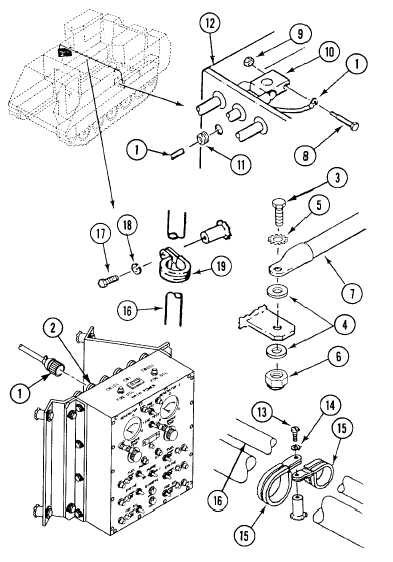

TM 9-2350-277-20-5 REPLACE SMOKE GENERATOR SYSTEM POWER SUPPLY CABLE ASSEMBLY (M1059A3 ONLY) — Continued 0757 00 6. Remove two screws (17), lockwashers (18), clamps (19), and cable assembly (16) from hull. Discard lockwashers. INSTALLATION 1. Secure cable assembly (1) to hull with two clamps (2), screws (3), and new lockwashers (4). 2. Secure cable assembly (1) to hull top plate with 12 clamps (5), six screws (6), and new lockwashers (7). 3. Install new grommet (8) on cable assembly (1). Route cable through hole in battery box (9). 4. Install cable assembly lead (10) on positive battery terminal (11). Secure with screw (12) and nut (13). 5. Install ground lead (14) on clean, paint-free hull bracket. Secure with screw (15), new lockwasher (16), two washers (17), and new locknut (18). 0757 00-2
