REMOVAL - TM-9-2350-277-20-5

REPLACE PERSONNEL HEATER FUEL PUMP HOSE (M113A3, M981A3, M1059A3, AND M58 ONLY)

TM-9-2350-277-20-5 Carrier Personnel Full Tracked Armored M113A3 2350-01-219-7577 (EIC AE7) Carrier Command Post Light Tracked M577A3 2350-01-369-6085 (EIC AE7) Manual
Page Navigation
212

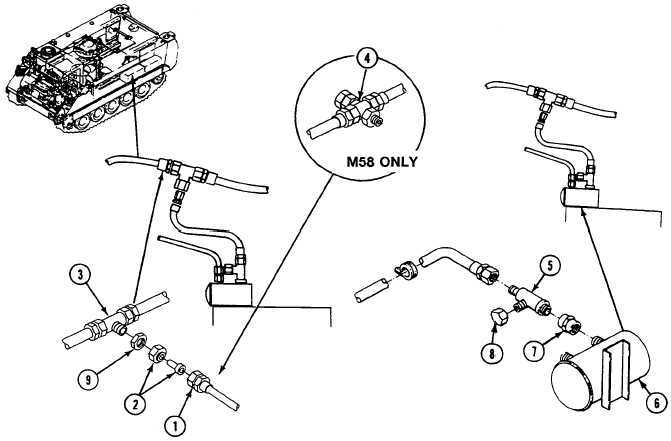

TM 9-2350-277-20-5 REPLACE PERSONNEL HEATER FUEL PUMP HOSE (M113A3, M981A3, M1059A3, AND M58 ONLY) — Continued 0689 00 REMOVAL NOTE On M58 only, a cross is used instead of a tee. 1. Remove hose (1), nut (9), and reducer (2) from tee (all except M58) (3) or cross (M58 only) (4). 2. Remove hose (1) from tee (5) on fuel pump (6). 3. Remove tee (5) from coupling (7). 4. Remove coupling (7) from fuel pump (6). 5. Remove cap (8) from tee (5). 0689 00-2
