TM 9-2350-277-20-4
REPAIR DRIVER’S HATCH (M901A3 AND M981A3 ONLY) — Continued
0538 00
NOTE
Make sure hatch is in the closed position.
3.

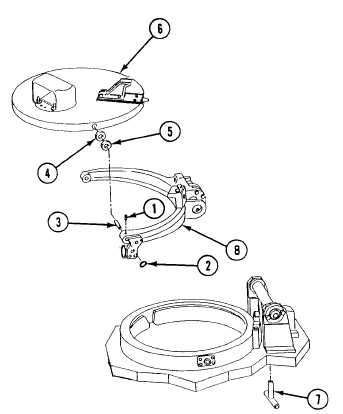

Remove two setscrews (1), snap rings (2), pins (3), washers (4), and washers (5) from driver’s hatch cover (6).
WARNING
A falling hatch is heavy and could kill you or your buddy. Equipment could also be damaged.
Make sure all personnel are clear before performing the next step.
4.
Pull hatch release handle (7) and allow yoke (8) to move to open position.
0538 00-3
