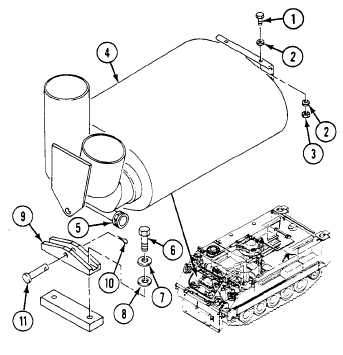

TM 9-2350-277-20-2REPLACE EXHAUST MUFFLER AND BRACKET — Continued 0224 00INSTALLATION1. Install bracket (9) on muffler (4) with pin (11) and new cotter pin (10).2. Install muffler (4) in carrier. Secure muffler and bracket (9) to sponson with two screws (6), new lockwashers (7), andwashers (8).3. Tighten clamp (5) securing muffler (4) to connector on air cleaner.4. Secure muffler (4) to hull bracket with two screws (1), four washers (2), and two new locknuts (3).FOLLOW-THROUGH STEPS1. Install muffler extension and cap (WP 0223 00).2. Install exhaust elbows (WP 0221 00).3. Lower power plant grill (WP 0464 00).4. Close power plant front access door (see your -10).5. Raise trim vane (see your -10).END OF TASK0224 00-2
