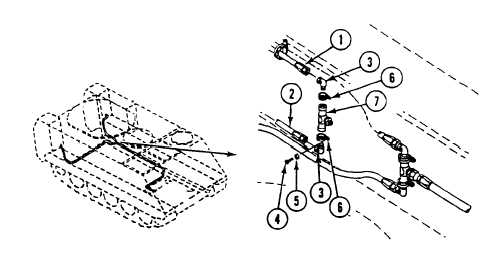

TM 9-2350-277-20-2 REPLACE FUEL RETURN HOSES, TUBES, AND FITTINGS (M1064A3 ONLY) — Continued 0197 00 21. Disconnect two fuel return hoses (1) and (2) from two elbows (3). 22. Remove two screws (4), lockwashers (5) and clamps (6) from weldnuts. Discard lockwashers. 23. Remove two clamps (6) and elbows (3) from tee (7). NOTE Do Steps 22 - 29 for removing left side fuel tank return hoses and fittings. Do Steps 32 - 41 for removing right side fuel tank return hoses and fittings. 24. Remove two screws (8), washers (9), and clamps (10) securing valve (11) to mounting block (12). 0197 00-5
