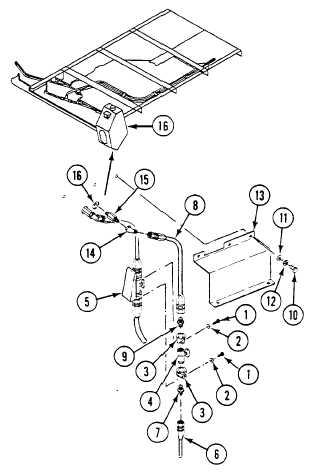

TM 9-2350-277-20-2REPLACE FUEL RETURN HOSES, TUBES, AND FITTINGS (M113A3, M901A3, M981A3,M1059A3, AND M58 ONLY) — Continued0195 00INSTALLATIONNOTEDo Steps 1 - 13 for installing right side fuel tank return hoses and fittings. Do Steps 14 - 26 forinstalling left side fuel tank return hoses and fittings.1. Apply sealing compound to external threads of adapter (15). Install adapter on fuel tank (16).2. Apply sealing compound to external threads of elbow (14). Install elbow on adapter (15).3. Apply calking compound to space around adapter (15) on rear hull plate.4. Install hose (8) on elbow (14).5. Install guard (13) on bulkhead and secure with five washers (11), new lockwashers (12), and screws (10).6. Apply sealing compound to external threads of adapter (9). Install adapter in valve (4).7. Install hose (8) on adapter (9).8. Apply sealing compound to external threads of adapter (7). Install adapter in valve (4).9. Install hose (6) on adapter (7).10. Secure valve (4) to mounting block (5) with two clamps (3), washers (2), and screws (1).0195 00-8
