353

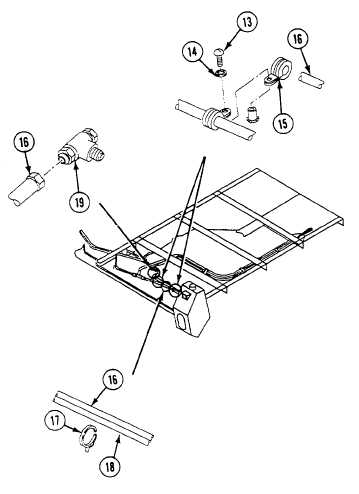

TM 9-2350-277-20-2 REPLACE FUEL RETURN HOSES, TUBES, AND FITTINGS (M113A3, M901A3, M981A3, M1059A3, AND M58 ONLY) — Continued 0195 00 19. Remove three screws (13), lockwashers (14), and clamps (15) from hose (16) and carrier. Discard lockwashers. 20. Remove two tie down straps (17) from two hoses (16) and(18). Discard straps. 21. Remove hose (16) from tee (19). 0195 00-6
